1000L Automatic Dosing System In Water Treatment Plant

Product Description

1000l Customized PH PAC PAM Alkaline Auto Acid Adding Stirring Detector Automatic Dosing Device Systems with Pump

Description

This dosing systesm are Automatic dosing device / sewage treatment dosing device Acid and alkali dosing device Protopine dosing device

The dosing device is also known as the dosing system and dosing equipment.

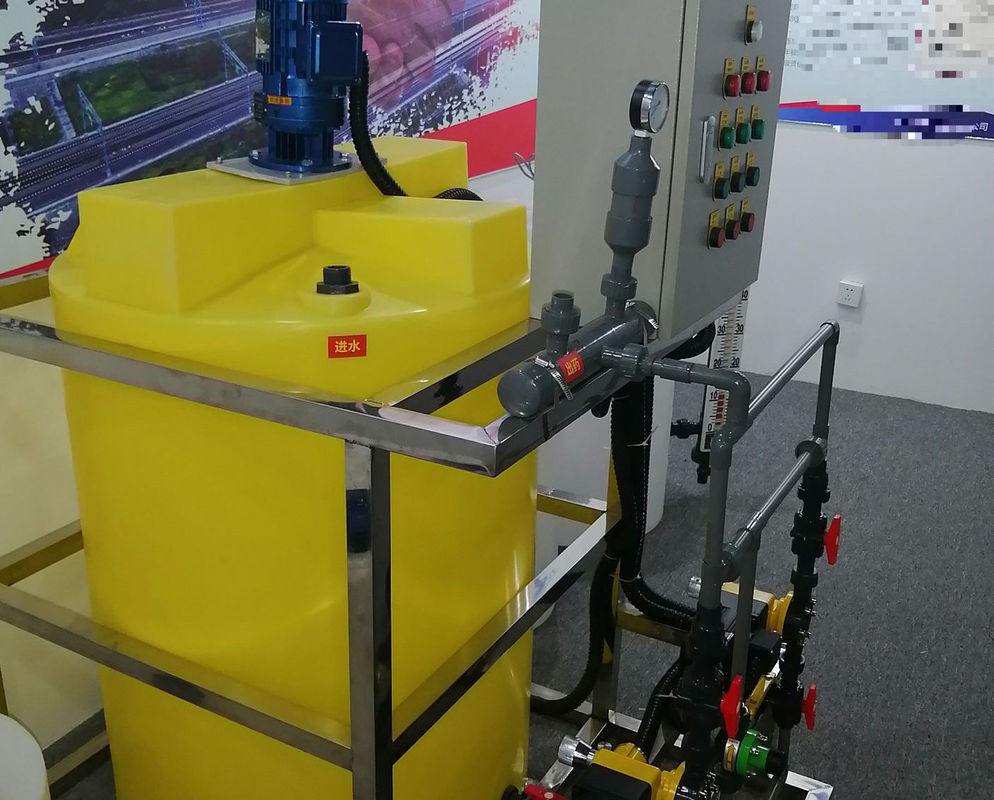

The dosing device is based on a metering pump as the main dosing

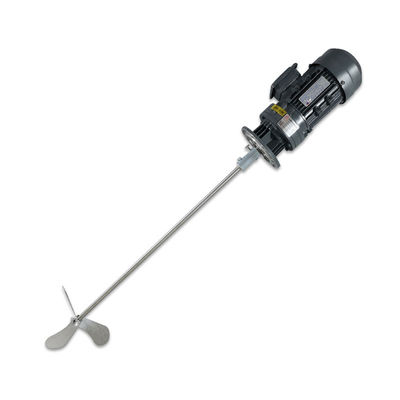

device, a dissolution kit, a stirrer, a level gauge, a safety valve, a check valve, a pressure gauge, a filter, a buffer, a pipeline, a valve, a base, an escalator, Automatic monitoring systems, power control systems, etc., need to be assembled on a common platform according to the process flow to form a module, a so-called skid-mounted modular unit.

The dosing device adopts a mechatronics structure form, which can be divided into fixed and movable from the installation. Each type of dosing device is equipped with a stirring system, a dosing system and an automatic control system. Several fixed armored units can be combined into a single unit, plus a variable frequency control system, which can realize local control, remote automatic control, and manual and automatic mutual conversion dosing. The utility model has the advantages of compact structure, small volume, low noise, simple installation, convenient operation and the like.

The dosing device injects chemical reagents into the various systems according to the process flow.

Specifications :

The device can be divided into three categories according to the occasion.

1. Oil field dosing device. It is mainly used for injecting various liquids such as flocculants, scale inhibitors, corrosion inhibitors, demulsifiers and the like into wellheads and other systems on the platform during oil extraction.

2. Boiler dosing device. It can be used to add ammonia and hydrazine to boiler feed water, add ammonia and hydrazine to condensate, add ammonia and add hydrazine to stop furnace protection, and add phosphate to steam boilers, mainly for power plants and power stations.

3, water treatment dosing device. During the water treatment process, tap water, waste water, and sewage.

Mainly used for related water supply and drainage treatment, environmental protection and other processes. Such as water plants, hotels, restaurants, swimming pools, sewage treatment plants.

Dosing System Working principle

The dosing device is based on metering pumps as the main dosing equipment, solvent dosing tanks, dosing devices, level gauges, safety valves, check valves, pressure gauges, filters, buffers, pipelines, valves, bases The escalators, escalators, automatic monitoring systems, power control systems, etc. are assembled on a common platform according to the process flow and form a module, the so-called skid-mounted modular unit.

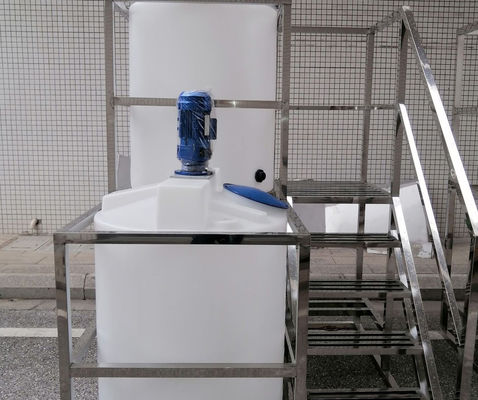

The dosing device adopts the form of electromechanical integration structure, and can be divided into fixed and movable (cart-type) from the installation. Each type of dosing device is equipped with a stirring system, a dosing system and an automatic control system. . Several fixed armored units can be combined into a single unit, plus a variable frequency control system, which can realize local control, remote automatic

control, and manual and automatic mutual conversion dosing. The utility model has the advantages of compact structure, small size, low noise, stable operation, simple installation and convenient operation and the like.

The dosing device is designed through different processes to precisely configure the solutions of various types of solid and liquid chemicals, and then accurately dosing with a metering pump to meet various design requirements. Such as descaling, oxygen, coagulation, acid, alkali and so on.

The dosing process can be manually operated, and can also be controlled by PCs, magnetic flap level gauges, pH meters, stroke controllers, frequency converters, and other electrical appliances, meters, and medicated devices.

The dosing unit and dosing pressure of the dosing device can be selected according to the needs of industrial processes. Flow rate from 1L/h to 8000L/h, pressure can be selected from the range of 0.1MPa to 25MPa to the right product,

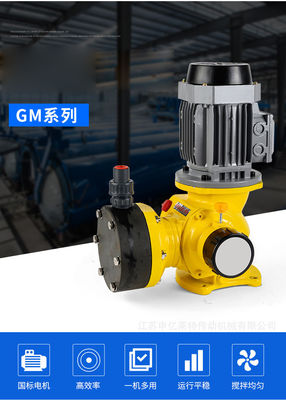

Metering pumps can measure up to ± 1% accuracy, and can achieve simultaneous delivery of a variety of media, individually adjusted.

The volume of the solution tank in the dosing device can be as small as 0.1m3 to 20m3, and can be selected according to the amount of dosing. According to the different transport media, there are many materials to choose from, such as carbon steel (carbon steel lined rubber), stainless steel, non- Metal materials (PE, PVC, PP, PTFE), etc.

The current sales mainly include the following:

1 Polyaluminum chloride (PAC) dosing device

2 Polyacrylamide (PAM) dosing device,

3 flocculant dosing device

4 Boiler water dosing device

5 Phosphate dosing device

6 PH acid-base adjustment dosing device

7 Scale inhibitor dosing device

8 sodium hypochlorite dosing device

9 Disinfectant Dosing Device

10 desulfurizer dosing device, etc.
